Additional Arm for Unit VAR V1

An additional arm with nozzle holder allows the user to continue his work during the time the other nozzle is in the process of being cleaned or autoclaved (sterilised).

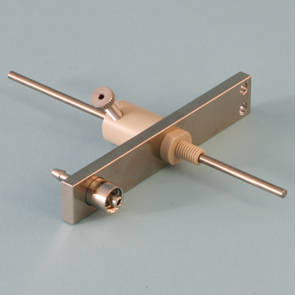

Additional arm with standard electrode

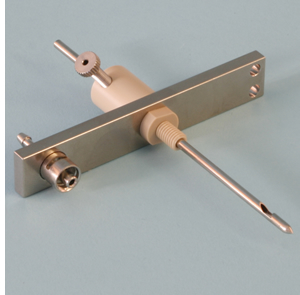

  Additional arm with electrode as dip tube
Additional arm with standard electrode
Additional arm with electrode as dip tube



Legend:
(1) Nozzle
(2) Arm
(3) Electrode Cable
(4) Electrode
(5) Knurled Screw 2
(6) Nozzle Holder
(7) Small Basin
(8) Big Basin
(9) Knurled Screw 1
(10) Screw
(11) Hose

Remark Position 4:

For those customers who work without exchanging calcium solution, we use electrodes without holes as standard; they are easier to clean.
The original electrodes with holes, dip tubes for exchanging the hardening solution, are still available as an option (see next picture).

nozzle holder draw
nozzle holder draw

Please use the Info-Form to ask for the adequate encapsulation system for your specific applications.

Please note: You need Acrobat reader to display the following PDF - Files.

pdf Download PDF-File Additional arm (106KB)
