Magnetic Stirrer MIXdrive 1 eco for VARJ30 & VARD2Go Microencapsulation Units

Nisco Art. Number: PE-00212

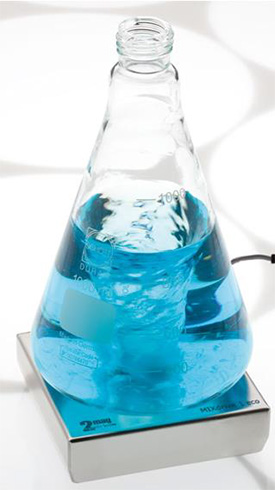

The remote-controlled, ultra flat, wear-free 2mag MIXdrive 1 eco magnetic stirrer with 1 stirring position is suitable for vessels up to 3,000 ml. It offers simple operation in a compact size.
This 100% maintenance-free stirrer has extraordinary mechanical, physical and chemical resistances.

Fully encapsulated and hermetically sealed stainless steel housing, IP68, water-, dust-, and germproof, extremely robust construction and performance, easy to clean and maximum resistance, submersible in water- resp. oil baths, suitable for the use in CO2-incubators and ovens.

Technical data:

  • Stirring Points: 1
  • Stirring volume / stirring point:         1 – 3000ml
  • Stirring Power (max.): 10W
  • Housing Material: Stainless steel
  • Permitted operation conditions: -10 °C up to +50 °C in air, up to +50 °C in water submerged
  • Operating voltage (max.): 48 VDC
  • Dimensions (WxDxH): 120x120x35mm
  • Protection category: IP68
  • Weight (goss): approx. 1.5kg

Benefits include:

  • Hermetically sealed in a resistant stainless steel housing, thus suitable for use under conditions of high ambient humidity or in aggressive media; impermeable to microorganisms
  • Can be cleaned under running water
  • Units for operation at +200°C in air or +95°C in water are optionally available

Please use the Info-Form to ask for the adequate encapsulation system for your specific applications.

Please note: You need Acrobat reader to display the following PDF - Files.

Download 230322_Magnetic_stirrer_MIXdrive_1_eco_EN (002) as PDF file
