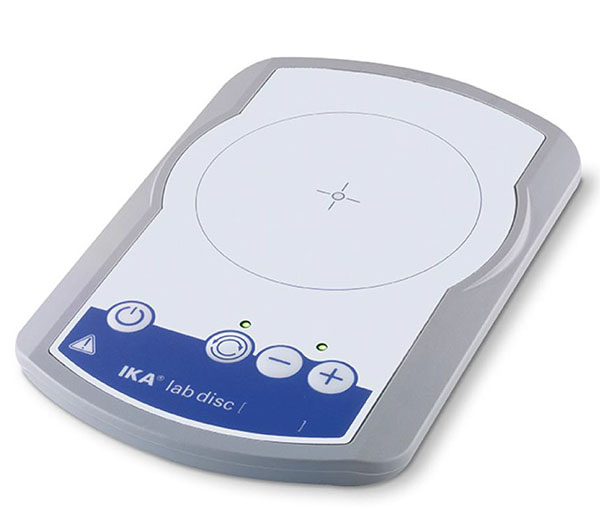

Magnetic Stirrer IKA® lab disc for (VARGravity2Go-1 & VARJ1)
Nisco Article N° PE-02005
Ultra-flat compact magnetic stirrer, guaranteed with modern magnet coil technology. Wear-free drive with no moving parts. To ensure better mixing, the lab disc can reverse direction of rotation automatically every 30 seconds.
Suitable for use with our VARJ1 and VARGravity2Go microencapsulation units.
Accessories:
- 1 piece of 150ml beaker Ø 80 x 45 mm,
Article N° PE-00537
1 piece of agitation element Ø 5 x 15 mm
Article N° PE-00957
Technical data
| Number of stirring positions: | 1 |
| Stirring quantity max. per stirring position (H2O) [lit]: | 0.8 |
| Motor rating output [W]: | 3 |
| Speed range [rpm]: | 15 - 1500 |
| Stirring bar length max. [mm]: | 25 |
| Set-up plate material: | polyester |
| Set-up plate dimensions [mm]: | Ø 100 |
| Dimensions (W x H x D) [mm]: | 116x12x175 |
| Weight [kg]: | 0.599 |
| Permissible ambient temperature [°C]: | 5 - 40 |
| Permissible relative humidity [%]: | 80 |
| Protection class according to DIN EN 60529: | IP 65 |
| Voltage [V]: | 100 - 240 |
| Frequency [Hz]: | 50/60 |
| Power input [W]: | 5 |
Please use the Info-Form to ask for the adequate encapsulation system for your specific applications.
Please note: You need Acrobat reader to display the following PDF - Files.
 |
Download 230322_Magnetic_stirrer_IKA_lab_disc_EN as PDF file |
